Drive Unit for Resistance Welder

Linear Slider Drive Head Controller & Linear Slider Drive Unit for Resistance Welder

Supports precision joining with 1 micron motor drive resolution.
The electric slider drive head controller and the electric slider drive unit are used in combination.

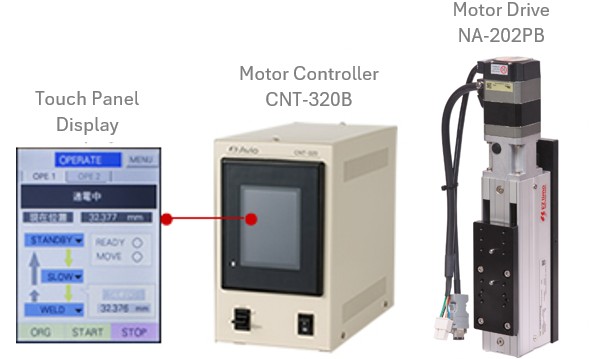

CNT-320B & NA-201PC-B, NA-202PC-B

  • Motor drive with 1μm resolution supports precise welding
  • It provides intuitive operation by color touch panel and lever jog switch
  • Soft-landing process with a slow moving speed of 0.1mm/sec is provided
  • Compatible to high pressure welding processes up to max. 300 N force. (When NA-202P is used)
  • Seven operation conditions can be saved
Items CNT-320B & NA-201PC-B, NA-202PC-B
Pressure NA-201PC-B MAX 150N
NA-202PC-B MAX 300N
Drive Method Linear Slider
Stroke MAX 50mm
Power Source DC24V ±5% 4A
(Option: AC Adapter AC100 – 240V)
Dimension
/ Weight		 CNT-320B W120 x D315.9 x H207mm ≈3.7kg
NA-201PC-B W63.2 x D82.5 x H311.2mm ≈2.2kg
NA-202PC-B W80 x D103.5 x H412.1mm ≈5.2kg



CNT-310 & NA-201

















  • It equips with soft landing & teaching function
  • Operation speed can be switched by Five steps
  • Operation position can be set by Four points
  • Timing of welding can be confirmed by LED
Items CNT-310 & NA-201
Drive Method Motor
Stroke Max 50mm, 10μm Step
Power Source DC24V ±10% 2A (Option: AC Adapter AC100 – 240V)
Dimension / Weight NA-201 → W50 x D82.5 x H320mm ≈2kg CNT-310 → W80 x D211 x H188mm ≈2kg

Air Drive













Manual Drive

Items NA-221 NA-222
Drive Method Air Air
Stroke Max 50mm Max 50mm
Speed Control with Speed Controller (Φ4mm Tube) with Speed Controller (Φ6mm Tube)
Air Pressure 0.05 – 0.6MPa 0.4 – 0.6MPa
Dimension / Weight W78 x D83 x H280mm ≈1.3kg W86 x D85 x H289mm ≈2.2kg



Items NA-231
Drive Method Manual by Foot Pedal
Stroke Max 10mm
Height Control Range 40mm
Dimension / Weight Drive Unit → W51 x D79 x H192mm ≈1kg Foot Pedal → W124 x D268 x H125mm ≈2.2kg
Details



Details



  •
