Resistance Welder DC Capacitor Model NRW-DC150A

The NRW-DC150A is a resistance welding machine providing direct current (DC) output via a capacitor discharge design. The unit is typically used in combination with a hand-held or automated welding head for joining connecting semiconductor lead frames and capacitor hoop materials. The weld is made when energy stored in the large-capacity capacitor is instantly discharged to the welding head for welding.

Features

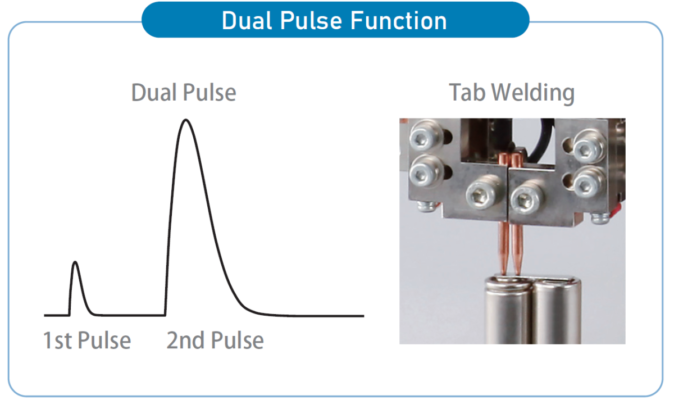

  • Dual Pulse Function: reduces weld spark and improves quality
  • Multiple Materials: suitable for aluminum, copper and other weld materials
  • Short, Concentrated Energy Burst: reduces deformation and burning
  • Fast Charge Time: improves productivity (welding speed 75W･S. 120 shots/min)
  • VS (Very Short) Mode: obtain peak welding current equivalent to a 200W･S type model

Items NRW-DC150A
Welding Transformer Built-in
Stored Energy 1.0-150.0 W･s
Maximum Output Power
（Peak Current Value）		 VS Pulse 5500A　（Welding time： ≒2.1ms）
S Pulse 4500A　（Welding time： ≒3.2ms）
M Pulse 3600A　（Welding time： ≒4.3ms）
L Pulse 2600A （Welding time： ≒6.2ms）
Maximum Duty Cycle 25W･s： 200 shots / min.
75W･s： 120 shots / min.
150W･s： 80 shots / min.
Dual Pulse Function Equipped as a standard specification
Squeeze Time 0.00 – 9.99s
Hold Time 0.00 – 9.99s
Power Source 1φ AC200 – 230V ±10% 50/60Hz
Dimensions(mm) W220 × D400 × H347
Weight ≒31kg

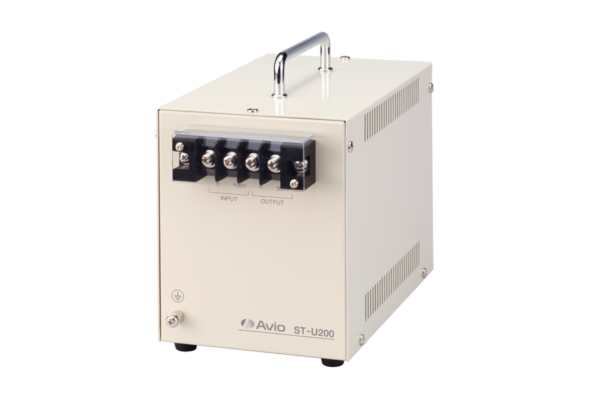

Step Up Transformer

Items ST-U200
Rated Capacity 2kVA
Input Voltage, Current 1φ AC100V、20A
Output Voltage, Current 1φ AC200V、10A
Dimensions(mm) W140 × D230 × H181（Excluding protrusions）
Weight ≒16kg
